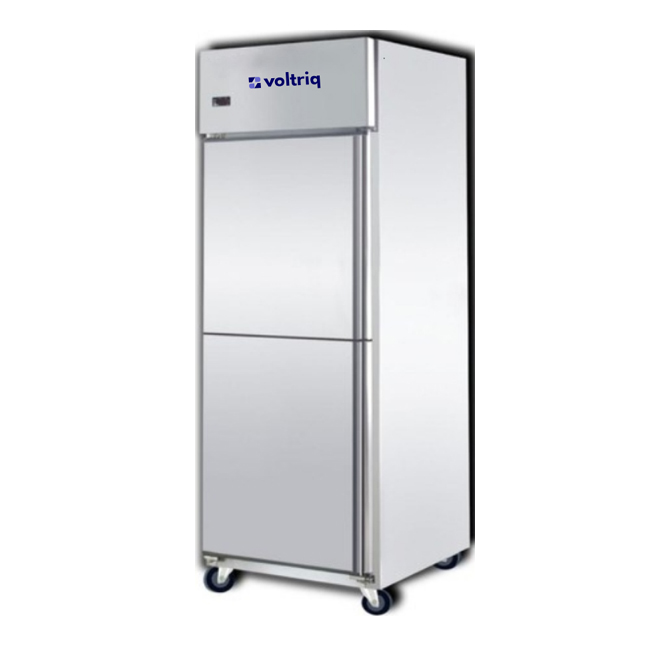

MODEL NO. – VF-800HTS
| CAPACITY LTR. | 800 Litres |
| COOLING MODE | Ventilated |
| AMBIENT CONDITION | N/ST |
| WHEELS | Yes |
| POWER SUPPLY | 220 / 50 Hz |
| LOCK / KEY | Yes |
| DEFROST | Automatic |
| INTERIOR LIGHT | Yes |
| SHELVES | Adjustable |
| NO. OF DOOR | 2, 3 or 4 (Optional) |

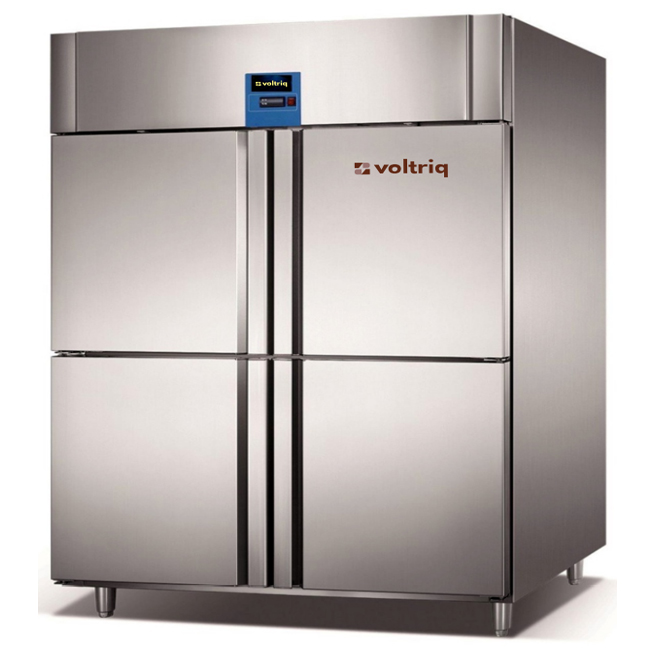

Voltriq reach-ins are available as Chillres or Freezer and come with 1.2 or 4 door options. Available in choice of two
refrigerator systems-Ventilated or static with fan, these are offered in capacities ranging from 600-2000 litres.
There are different models to address the wide-ranging needs.
| CAPACITY LTR. | 800 Litres |
| COOLING MODE | Ventilated |
| AMBIENT CONDITION | N/ST |
| WHEELS | Yes |
| POWER SUPPLY | 220 / 50 Hz |
| LOCK / KEY | Yes |
| DEFROST | Automatic |
| INTERIOR LIGHT | Yes |
| SHELVES | Adjustable |
| NO. OF DOOR | 2, 3 or 4 (Optional) |
Design
*Optimized space utilization design with multi -level
and adjustable shelf height to accommodate storage
requirement of pharmaceutical products of various kinds.
*Safety lock to prevent unauthorized access.
*Caster design and leveling legs.
*LED Interior light.
Air-cooling System
*Advanced forced cooling system to keep inside
temperature stable and uniform. Finned evaporator with
special cyde design of forced air cooling system to assure
no-frost inside.
Reliability and Key Features
*High efficiency specialty compressor with known field
reliability.
*Permanently lubricated cooling fan for safety and
longevity
*Forced-aircooling with optimized air distribution system
designed.
*To achieve maximum temperature uniformity and stability.
*Optimized refrigeration system design for more effective
cooling and Speedy recovery
*Temperature variation within ±3’C
*Adjustable temperature range 0° to -30°C
*Microprocessor control, digital display, and temperature
adjustment with an increment of 0.1°C
*Digital display screen Optional.
Key Features
*Advanced forced-air cooling system, large airflow with
optimized air channels to guarantee inner temperature
consistency. The special finned evaporator ensures no-frost and
effective temperature management within ±3°C, the adjustable
temperature range: 0° to -30°C
*Multi-level and adjustable shelves for various dimensions of
pharmaceutical products, making full use of the space.
*Inner light for clear display
*Prepainted solid door
*Lock and key
*Fan assisted cooling system
*Revisable self-closing door
*Roll bond plate with fan for chiller
*7 layer of evaporator as shelves for freezer
*Two front adjustable feet, two rear wheels
*Optimized refrigeration system design for more effective
cooling and Speedy recovery
*Temperature variation within ±3’C
*Adjustable temperature range 0° to -30°C
*Microprocessor control, digital display, and temperature
adjustment with an increment of 0.1°C
*Large digital display screen
Characterstic Function
*Safety door lock design to avoid door ajar
*Optional testing hole
*Adjustable shelves
*Inner light design for a clear display
Safety
*Equipped with a complete temperature alarm system
featuring audible buzzer and visible flashing light.
*Capable of alerting failures due to high and low
temperature sensor error, door ajar, power failure and low
battery.
