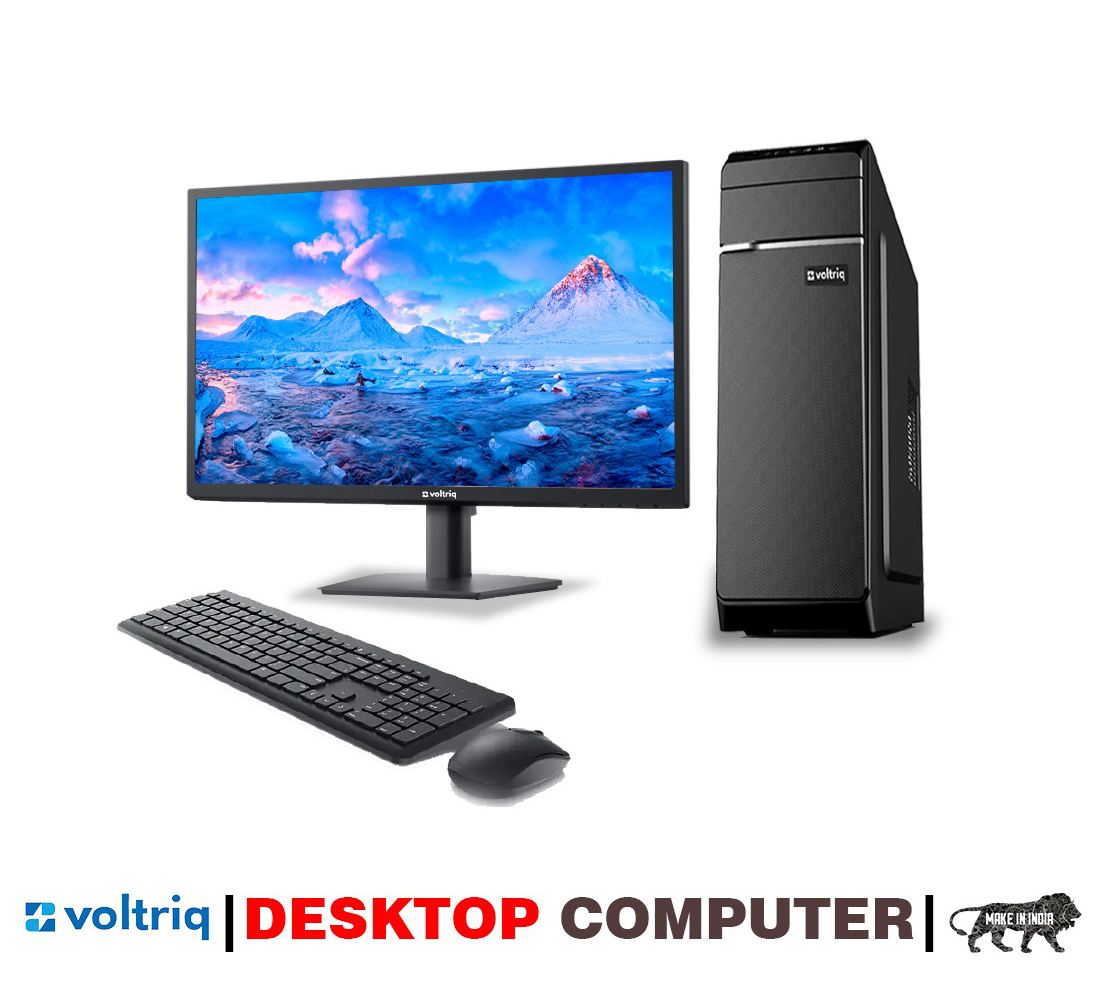

Voltriq VI700A Desktop

Specifications

Voltriq AMD series Specifications table

Available Operating Systems
Windows 10 /11 Pro 64
Windows 10 /11 Home 64
FreeDOS

Voltriq recommends Windows 10 /11 Pro for business.



Processor Family

AMD Ryzen™ 7 5700G processor.



Available Processors

AMD Ryzen™ 3 4350G with Radeon™ Graphics (3.8 GHz base clock, up to 4.0 GHz max boost clock, 4 MB L3 cache, 4 cores)

AMD Ryzen™ 3 PRO 5350G with Radeon™ Graphics (4.0 GHz base clock, up to 4.20 GHz max boost clock, 10 MB L3 cache, 4 cores)

AMD Ryzen™ 5 5600G with Radeon™ Graphics (3.9 GHz base clock, up to 4.4 GHz max boost clock, 16 MB L3 cache, 6 cores)

AMD Ryzen™ 5 PRO 5650G with Radeon™ Graphics (3.9 GHz base clock, up to 4.4 GHz max boost clock, 19 MB L3 cache, 6 cores)

AMD Ryzen™ 7 5700G with Radeon™ Graphics (3.8 GHz base clock, up to 4.6 GHz max boost clock, 16 MB L3 cache, 8 cores)

AMD Ryzen™ 7 PRO 5750G with Radeon™ Graphics (3.8 GHz base clock, up to 4.6 GHz max boost clock, 20 MB L3 cache, 8 cores)

AMD Ryzen™ 9 5900X with Radeon™ Graphics (3.7 GHz base clock, up to 4.80 GHz max boost clock, 64 MB L3 cache, 12 cores)

AMD Ryzen™ 9 PRO 5950X with Radeon™ Graphics (3.4 GHz base clock, up to 4.90 GHz max boost clock, 64 MB L3 cache, 16 cores)



Chipset

AMD PRO 550/560/565

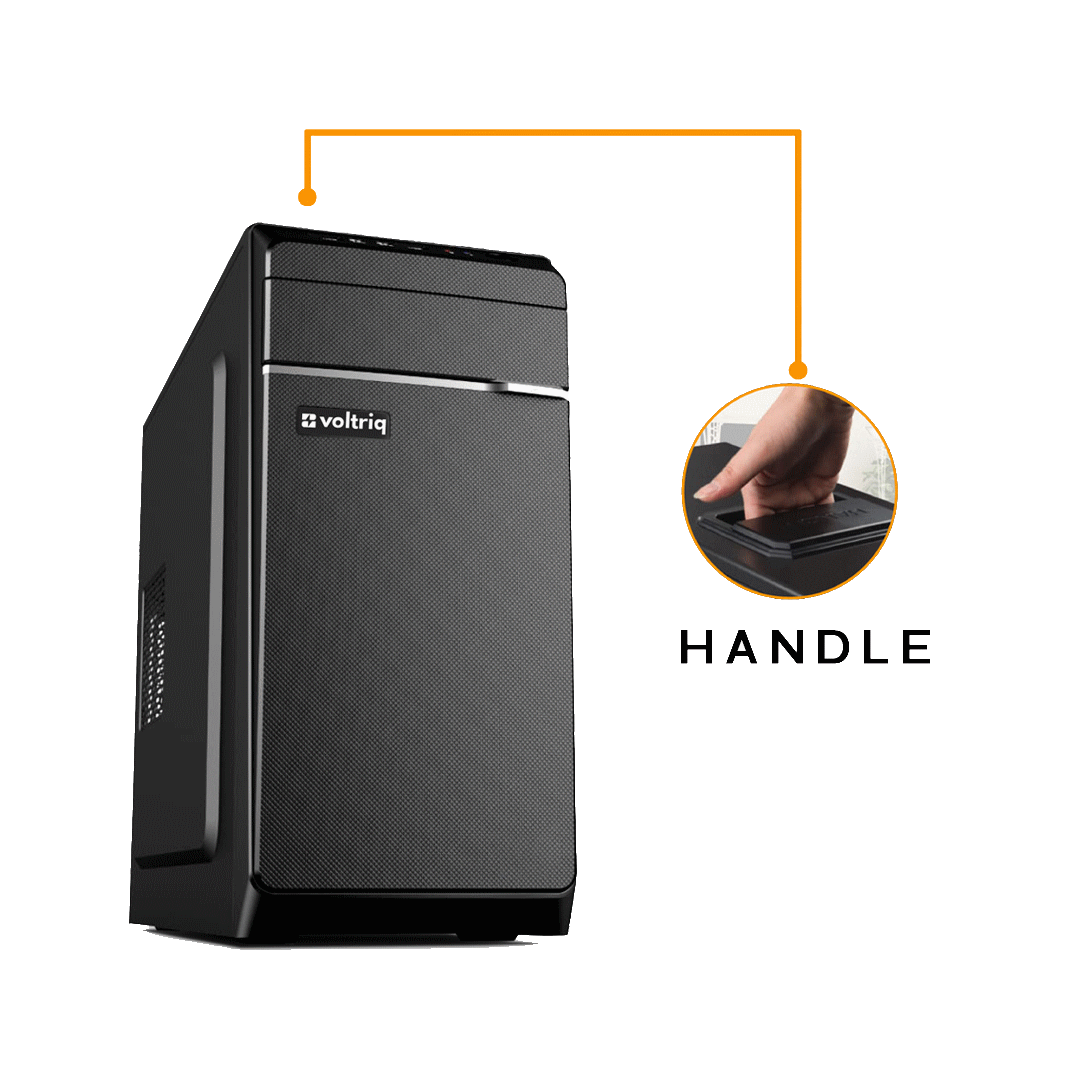

Form Factor

Microtower



Maximum Memory

128 GB DDR4-3200 SDRAM



Memory slots

2 DIMM



Internal Storage

500 GB upto 2 TB SATA HDD
128 GB upto 1 TB PCIe® NVMe™ M.2 SSD



Optical Drive

DVD-Writer



Available Graphics

Integrated:AMD Radeon™ Vega 11 Graphics; AMD Radeon™ Vega 8 Graphics; AMD Radeon™ Vega 7 Graphics; AMD Radeon™ Graphics

Audio

Realtek ALC3601 codec, optional internal speaker, combo microphone/headphone jack.



Expansion slots

1 full-height PCI; 1 PCIe x1; 1 PCIe x16; 2 M.2 (1 M.2 slot for Optional WLAN and 1 M.2 2242/2280 slot for storage).



Ports and Connectors

Front:1 headphone/microphone combo; 2 USB 2.0;
Rear:1 HDMI; 1 line in; 1 line out; 1 power connector; 1 RJ-45; 1 VGA; USB Type-A 5Gbps signaling rate.



Optional Ports

1 parallel; 1 serial; 2 USB 2.0



Available Keyboards

USB Slim Business Keyboard; Wired Desktop Mouse and Keyboard Wireless Keyboard & Mouse.



Available Pointing Devices

PS/2 mouse; USB wired optical mouse; Wireless Mouse.



Communications

Integrated 10/100/1000M GbE
Realtek 802.11a/b/g/n/ac (1×1) and Bluetooth® 4.2 Combo (Optional).



Drive Bays

Two 3.5″ (2.5″) HDD



Security Management

Trusted Platform Module (TPM) 2.0 (via firmware); Integrated accessories cable lock.



Power

180 W internal power supply, up to 90% efficiency, active PFC; 310 W internal power supply, up to 90% efficiency, active PFC; 500 W
internal power supply, up to 90% efficiency, active PFC.



Energy efficiency compliance

BEE ;FCC; RoHS; CE
